Customized Loading Capacity Electric Transfer Trolley Vehicle For Spray Booths

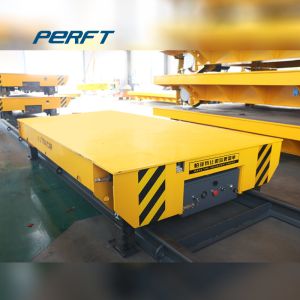

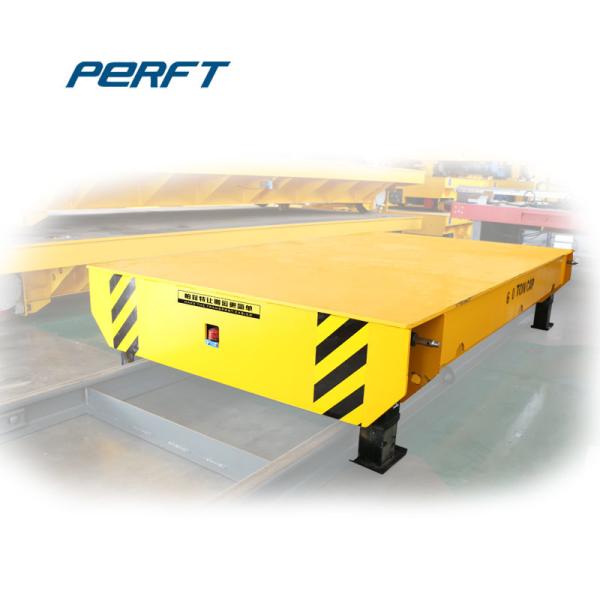

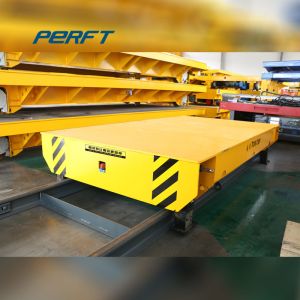

Preview of Electric Transfer Cart

Our BXC series electric transport cart is powered by batterry. The battery is fitted in the inner of the cart. The direct-current machine gets its power from the electric control system, which makes the cart to start, stop, move forward and move backward. It could run on straight line, L-form tracks or curved tracks. We can also fit hydraulic lifting system if needed.

Parameter of Electric Transfer Cart

Model		BTL-2t	BTL-20t	BTL-50t	BTL-100t	BDGS-150t
Rated Load(t)		2	20	50	100	150
Table Size(mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Heigth(H)	450	550	650	850	1200
Wheel Base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	2000	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		0.8	2.5	5.5	11	15
Running Distance(m)		0-20
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Reference Weight(t)		2.3	5.5	7.6	13.9	26
Recommended Rail Model		P15	P24	P43	QU100	QU100

Customization

Appearance
Table size, Table material, Table type, Rated load, Color, Wheel base,Detachable structure, etc.
Special Function
Hydraulic lift table, Dumpling, Climbing, V shape, PLC control system, Automatic positioning, clamping device, Anti-explosion, Heat-proof function, Weighting system, etc.
Safety Device
Alarm light, Emergency stop button, Radar detector, Buffer, V shape support, Guardrails, etc.
Special Design
Round corner, Hold pendant box, Lifting hole, etc.

Henan Perfte Handling Equipment Co.,Ltd is a collection of research and development,design,manufacturing company of handling equipment.Our company has a modernized management team,technology team and production technician team of electric handling equipment, battery powered transfer cart, material transfer trolley, ladle transfer bogie, coils track carriage etc. As one of the professional manufacturing company which has a modernized management team and excellent staff. Our products get CE, SGS, ISO certificate and other 8 national patents and our products have been exported to more than 40 countries and regions.

Henan Perfect Handling Equipment Co., Ltd has acquired and enforced in its manufacture the best ideas springing from this technological environment through the will and interest of its engineers and workers, specialized in mechanics, hydraulics, electronics and pneumatics .PERFECT adopts an integrated management system according ISO 9001norms, which promotes the continuous improvement of the company processes and products.

Henan Perfect Handling Equipment Co., Ltd is the famous material Transfer Cars manufacturer, whose products can be customized and widely used in the whole world. Our company has passed ISO9001 Quality management system and got the CE,SASO,SGS certificate.Meanwhile,we also got 8 national patents.

Since 2015, Henan perfte handling equipment Co.,Ltd focused on the research and development and production of various types of different transfer cart,and our products not only have sold across the country,but also exported to US,Germany,Thailand,Netherlands,South Africa,Syria,Turkey,Nepal etc.

Our brief is“I believe in myself,and believe our own products”；“I believe in our company,I believe that my colleagues and assistants”；“I believe in a good mood,also believe that the world’s greatest word is confidence.”

People who interested in our products or want to get more information about us,contact us,please!Looking forward for your inquiry.
