Towed Cable Powered Transportation Platform for Metal Sheet Like
Coil
Introduction of Towed Cable Powered Transportation
BTL series towed cable powered transportation permit the 380V
alternating current get in the electric control system directly and
then drive the motor to make it start, stop, move forward and move
backward. The cable lies in the middle of the two rails and the
working voltage is safe 36V. It can be used in high temperature and
explosion proof environment. It's usually used for short distance
within 20 meters transportation. This rail transfer cart can be
used in some special envirorment like steel mills, shipyards, mines, construction sites, ports, docks, cargo
logistics, workshops. We can install some special equipment like
hydraulic lifting platform ,V-shape structure and more...
Application of Towed Cable Powered Transportation
This transfer cart can free move in the fixed place, within 20
meters to move. So we can image that it can be uesd in workshop to
round trip transportation.But if has other requirement, you can
told me the specific order. We produce a wide range of rail flat
cars, railway guided transfer carts, factory transport equipment,
battery powered trolleys, intelligent self-propelled trolleys, die
carts, industrial flat trailers, tilters and lifting platforms that
operate in many industrial fields: metallurgy, manufacture, oil and
gas, die factory, shipyards, chemical plant, automotive, mining
industry, aerospace, power generation, coal industry, paper mills,
metalworking, warehouse and many other lines. We have confidence to
provide the product that you want!
Parameter of Towed Cable Powered Transportation
Model | BTL-2t | BTL -20t | BTL -50t | BTL -100t | BTL -150t |
Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 |
Height(H) | 450 | 550 | 650 | 850 | 1200 |
Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 |
Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 |
Wheel Quantity | 4 | 4 | 4 | 4 | 8 |
Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 |
Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
Advantages of Towed Cable Powered Transportation
Maybe you will have a consideration before buying a car, I
recommend you our products to you strongly for the following
reasons:
Low noise
It's powered by electric devices, so when you are operating it, you
can't feel much noise. It causes low noise level and give workers a
good working environment.
Maximum safety
We always try our best to make sure the safety of the operators and
the material handled. We do care the safety of everyone involved in
the job.
Easy for operation
Our vehicles are easy to drive, so as soon as you get it you will
be able to use it to transport your loads. We will support you to
make the best by using our products.
Details And Spare Parts
Will A Transfer Cart Be A Good Solution?
A good question to ask since there are many material handling
solutions on the market! Which one is the right choice? For
starters, transfer carts are moveable platforms used for the
horizontal movement of materials, assemblies, and other items.
Consideration must be given to the weight of the load and the
travel requirements for the application.
What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific work
place activities such as shuttling materials. This often makes the
carts more available for use. Transfer carts are more accommodating
for moving long loads through restrictive passage ways or doorways.
For heavier loads transfer carts are an excellent affordable choice
for their ability to handle heavy loads. Transfer carts are compact
in design and work well in areas with limited floor area. Another
advantage over lift trucks is how the cart deck can be customized
to suit specific loads.
What Product Handling Applications Use Transfer Carts?

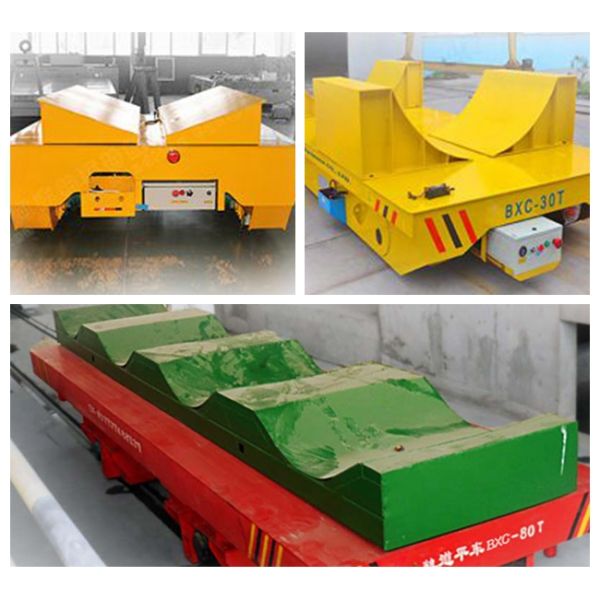

1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a
partially completed product to the next station (tractors, heavy
equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to
locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard
rails)
8. Elevating platform for assembly process (integrated screw-jack
table)
9. Sand casting (flat decking)
Process Technology
1. CNC Cutting
2. Preliminary Assembling
3. Welding
4. Post weld treatment
5. Spray Primer
6. Assembling
7. Paint finish
8. Debugging
Application Sites of Transport Trailer Cart
It is running on steel tracks or steel square bars. It is commonly
applied in steel plant, aluminum factory, power station, airport,
plastic pipes factory, etc to transfer material, container, lathes
from one location to another.
We can add some specific functions according to your special needs.
Other Products We Provide
BTL: powered by the cable
BJT: powered from the cable reel.
BXC: powered by the storage battery
BHX: powered by the slide wire
BDG powered by the conductor rails
Why Choose US
1. We are professional design and manufacture transfer cart
company.with 15 years experience in this fields.
2. We guarantee high quality product,we do care worker's safe.
3. Our warranty is 12 months, during this period, we can maintance
is for you freely, after that period,we only charge cost price.
4. Various modes including email, telephone, and online for
operating guidance.
5. Flexible payment method for customers' choice.
6. Excellent engineers' team are available at the any time for
customers' questions.
