    Polyurethane Solid Wheels Material Transfer Cart Customized Transport Wagon

    Ask Lasest Price
    Brand Name : PERFECT
    Model Number : BWP
    Certification : CE, SGS, ISO
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 75 Sets per month
    Delivery Time : 45 Days
    • Product Details
    • Company Profile

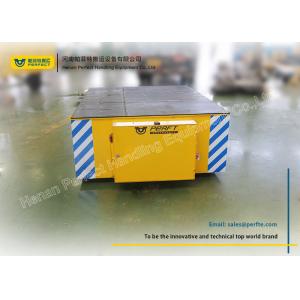

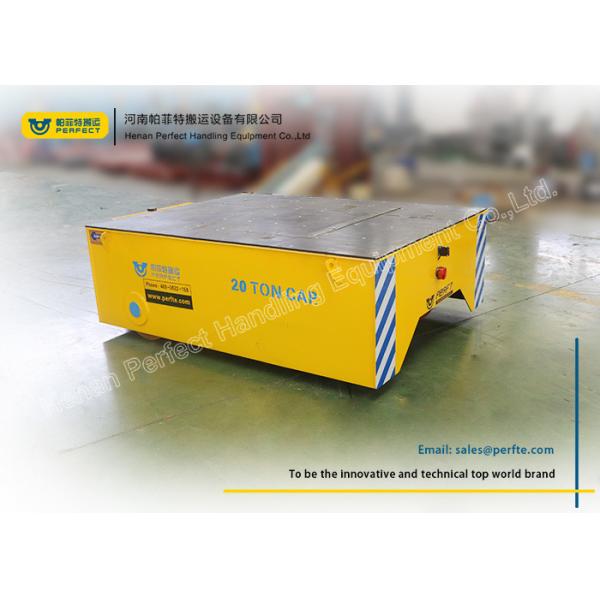

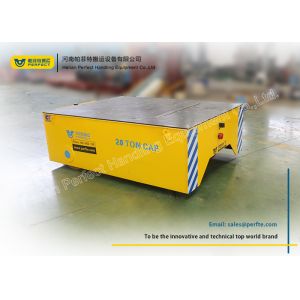

    Polyurethane Solid Wheels Material Transfer Cart Customized Transport Wagon

    Mobile Battery Powered Material Transfer Cart Customized Transport Wagon


    General Preview of Material Transport Wagon

    Our material transport wagon is powered by storaged power. The battery is fitted in the inner of the vehicle. It's elegant, reliable and high efficient. The wheel is made up of polyurethane solid wheels so the wagon has big load capacity and long service time. We use inported battery it's long in working time and high in quality. You need to charge it for 8 hours and then keep it work for over 4 hours. We think it's a right transfer vehicle for you!


    Application fields of Material Transport Wagon

    Our Transfer vehicle can be used in many different fields. For example:


    Paper Making

    In the process of paper making, workers need to transport raw materials-wood, transport papaer pulp and finally trasport products. It works smoothly and make sure the maximum safety.


    Construction

    You can use our transfer wagon to transport construction mateials.


    Ship Building

    Our transfer vehicle can also be used in ship building industry. We can use our transfer vehicle to transfer heavy steel and carry out other heavy duty tasks.


    Air Port

    you can use our products to carry heavy cargo from the luggage station to the airplane.


    Advantages of Material Transport Wagon



    Parameters of Material Transport Wagon

    ModelBWP-5tBWP-20tBWP-30tBWP-40tBWP-50t
    Rated Load(t)520304050
    Impacted rated load(t)520304050
    Structure of FrameSteel plates welded, beam
    thickness of the steel plate814141616
    Cart weight(t)4.37.98.81010.5
    Max. wheel load (t)2.85.67.71012
    Ground requirementCement floor or Steel plate ground
    Ground Clearance(mm)5050505050
    Table size (mm)3000*20004500*22005000*22005500*23006000*2300
    Height of the whole cart (mm)450600650700700
    Wheel base (mm)15001700170018001800
    Axles distance (mm)25003900430048005200
    Turning radius (mm)25013901430148015201
    Turning typeTurning while driving with no stop
    Control method for turningControl button
    Turning structureMechanical
    Motor power (KW)3.57101215
    Wheel diameter (mm)300 (4)400 (4)400 (6)500 (6)500 (6)
    Wheel materialZG55+hydropurture
    Running speed (m/min)0-150-12
    Brake principleElectric magnetic brake
    Ground balancemechanical automatic adjustment
    Operation methodWith wire or no wire
    Battery modelD-250 24piecesD-440 24piecesD-250 36piecesD-330 36piecesD-440 36pieces
    Charger's installationInstalled on cartSplit-type
    Cart colorYellow and warning sign
    Radar control3-0.3 m, Automatic stop for obstacles
    Other functionsTurning light, night light and power display


    Packing & Shipping

    We will try our best to make sure that your products are delivered safely. The body of the cart is packed with tarp, the small parts will be packed with wooden cases. According the table size and quantity, the cart would be carefully fixed and transported by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.


    Contact Information

    Help you to choose the most suitable cart

    Thank you very much for looking through the information above. If you are interested in our products, please send us an E-mail and tell us the following information. Thank you!

    • What material/cargo are you going to transfer?
    • What load capacity do you want?
    • What kind of ground does the transfer cart operate on? (rails or cement floor)
    • What’s the specification table size ? (length,width and height)
    • How long is the running distance?
    • How many working hours do you have everyday?
    • What special requirements do you have?
