heavy capacity track transfer cart powered by rails for handling material

Henan Perfect Handling Equipment Co., Ltd.
Contact Now
    Buy cheap heavy capacity track transfer cart powered by rails for handling material from wholesalers

    Buy cheap heavy capacity track transfer cart powered by rails for handling material from wholesalers
    • Buy cheap heavy capacity track transfer cart powered by rails for handling material from wholesalers
    • Buy cheap heavy capacity track transfer cart powered by rails for handling material from wholesalers
    • Buy cheap heavy capacity track transfer cart powered by rails for handling material from wholesalers
    • Buy cheap heavy capacity track transfer cart powered by rails for handling material from wholesalers

    heavy capacity track transfer cart powered by rails for handling material

    Ask Lasest Price
    Brand Name : track transfer cart powered by rails
    Model Number : track transfer cart powered by rails
    Certification : CE ISO SGS
    Price : USD 2000~7500set
    Supply Ability : 100 sets month
    Delivery Time : 20 work days after received balance payment
    • Product Details
    • Company Profile

    heavy capacity track transfer cart powered by rails for handling material

    track transfer cart powered by rails for handling material

    Henan Perfect Handling Equipment Co., Ltd is a collection of research and development, design, manufacturing as one of professional international manufacturing company of track transfer cart powered by rails. Our company has been founded for 13 years and has become enterprise in the track transfer cart powered by rails business.


    This BDG track transfer cart is powered by the rails.The rails need to be insulated in erection.When the running distance is longer than 70m , the transferormer needs to be increased to raise the voltage.

     track transfer cart powered by rails

    heavy capacity track transfer cart powered by rails for handling material

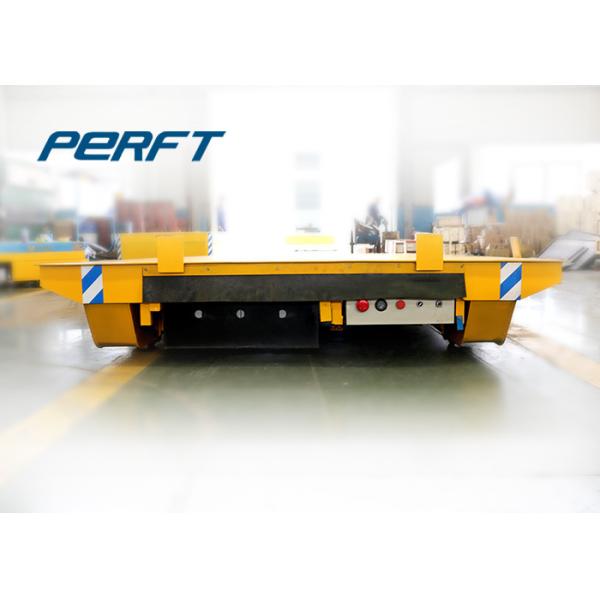

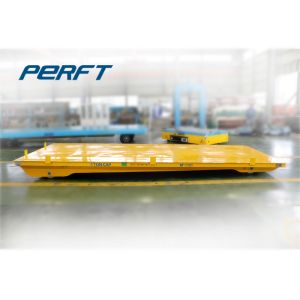

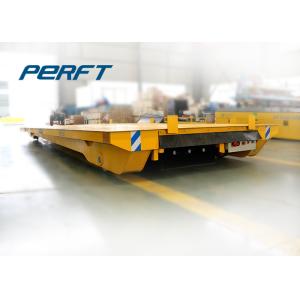

    Detailed Image Of track transfer cart powered by rails
     track transfer cart powered by rails
    Welding & Maching Of track transfer cart powered by rails

     track transfer cart powered by rails

    Technical Parameters Of track transfer cart powered by rails
    ModelBDGZ-2tBDGZ-20tBDGZ-50tBDGZ-100tBDGZ-150t
    Rated Load(t)22050100150
    Table Size(mm)Length(L)200040005500650010000
    Width(W)15002200250028003000
    Heigth(H)4505506508501200
    Wheel Base(mm)12002800420049007000
    Rail Inner Gauge(mm)12001435143520002000
    Wheel Diameter(mm)270350500600600
    Wheel Quantity44448
    Ground Clearance(mm)5050507575
    Running Speed(min)0-250-200-200-200-18
    Motor Power(kw)0.82.55.51115
    Transformer Power(KVA)36.8103030
    Transformer Quanity11111
    Running Distance(m)7070505050
    Max Wheel Load(KN)14.477.7174343.8265.2
    Reference Weight(t)2.85.9814.626.8
    Recommended Rail ModelP15P24P43QU100QU100
    Application Sites Of track transfer cart powered by rails

     track transfer cart powered by rails

    Railroad Traverser
